VFD580 7.5KW 380V Variable speed drive support Modbus, Canopen, Profinet communication
1. Main features of VEIKONG VFD580
1. Drive three-phase AC asynchronous motor and permanent magnet synchronous motor, and supports three control modes of speed, torque and servo position.
2. Excellent asynchronous and synchronous motor SVC algorithm can control the speed and torque of the motor with hiah precision even without encoder feedback. and the low-frequency torque control accuracy is better than that of imported brands.
High reliability
3. 15KW and above models are equipped with built-in DC reactor as standard.
4. 37KW and below are equipped with built-in braking unit as standard, and models below 90KW are equipped with brake circuit short circuit protection function.
16355
5. The whole series is equipped with buffer relay (contactor) abnormality protection circuit as standard.
2. VFD580 Technical Speficiation:
| Item | Specification |
| Input terminals | Standard:
7 digital input terminals, one of which supports high-speed pulse input up to 50kHz;3 analog input terminals, one supports -10V - 10V input, two supports 0 - 10V voltage input or 0 - 20mACurent input; (VFD586 2 analog inputs, One channel supports -10-10V, and one channel supports 0-10or 0-20mA options)
. 1 motor temperature detection, support PT100, PT1000, KTY84-130 three kinds of thermistor input;SLOT2 expansion:
2 DI digital input terminals (MT580-IOEX1) |
| Output terminals | Standard:
. 2 digital output terminals; 1 of which is a high-speed pulse output terminal (open collector type).supporting square wave signal output from 0 to 50kHz:
2 relay output terminals;2 analog output terminals, 1 0nly supports 0 - 10V voltage output, one supports 0 - 20mA current outputor 0~ 10V voltage output; (VFD586 1 analog output ,Supports 0-10V or 0-20mA options)SLOT2 expansion:
2 digital output terminals (MT580-IOEX1) |
| Installation location | Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt. |
| Altitude | 0 to 3000 meters. Above 1000 meters, reduction in use is required, with a decrease in rated outputcurrent of 1% for every 100 meters increase in altitude. |
| Humidity | Less than 95%RH, without condensing |
3. The introduction of our company Veikong
Shenzhen Veikong Electric CO.,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter, providing our clients with integrated system solutions. We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management.Veikong also is one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series inverters, which has reached the international advanced standard. The products can directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support. We have achieved popularity and qualification in VFD industry. Quality is the life of enterprise.
Veikong, your trusted supplier!

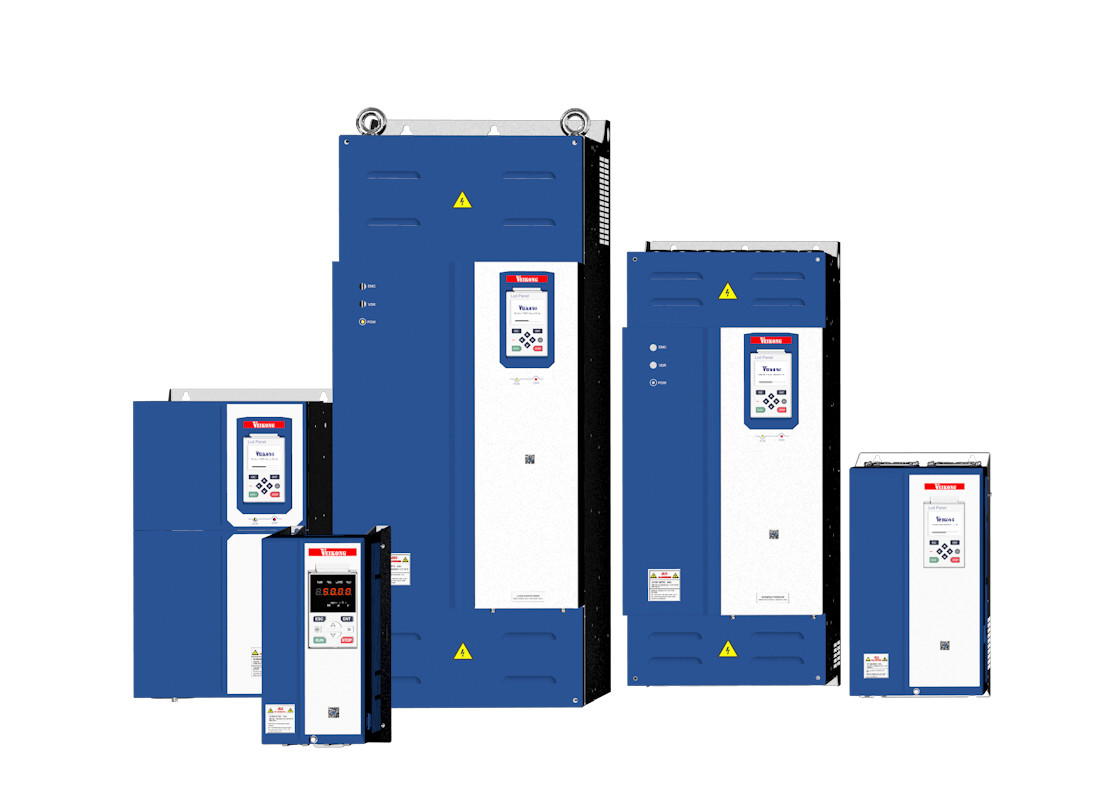

4. VFD580 product images
